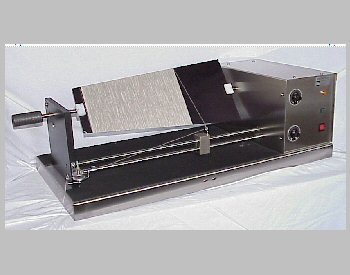

BOARD WINDER - ILE-TPR-5

Taper-ray Trapezoidal Board Winder, motor driven with electronic speed controls for even wraps on all size yarns.  With 3 black boards.

115v 60 Hz. or 220v, 50Hz.

ADDITIONAL FEATURES:
            Option B: Multiple Traverse Head

            Multiple traverse head for comparison of up to 5

            different yarns on the same board.

            Option C: Adjustable Clamping Jaws

            Adjustable clamping jaws on the motor side to allow for winding

            standard ASTM cardboards or longer black anodized trapezoidal

            or rectangular boards.

ADDITIONAL BOARDS (ILE Trapezoidal or rectangular, black metal):

ILE-TPR-5B BOARD WINDER

Similar to ILE-TPR-5 but with multiple traverse head for comparison of up to 5 different yarns on the same board. Complete with 3 black anodized rectangular or trapezoidal boards.  115V, 60 Hz.  or 220V, 50 Hz

ILE-TPR-5C BOARD WINDER

This model features removable jaws on the motor side to allow for winding standard ASTM cardboards or longer black anodized trapezoidal or rectangular boards.  Complete with a supply of 5"X9", 7"X11", and 9"X12" cardboards and 3 metal boards. 110 V, 60 Hz or  220 V, 50 Hz

ASTM YARN APPEARANCE BOARDS

Standard yarn appearance boards.

Grades: A, B, C, D.  Please specify yarn count number (Ne) range of 1-12, 12-24, 24-36, 36-50, 50-75 o 75-135.

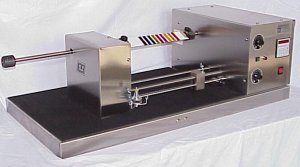

Inspection Card Winder  - Model: ILE-CB-2-SD

Dual motor driven inspection card winder. Single layer sample one direction only. Specially designed for winding sample cardboards of color and natural yarns. Speed of card and traverse are adjusted separately. Automatic stop and preset location. Sample spacing set manually.

110V, 60Hz.

Inspection Card Winder Model: ILE-CB-2-BD

Dual motor driven inspection card winder.  Specially designed for winding sample cardboards to check appearance characteristics of dyed yarns on colorimeters.  Programmable counter allows selection for width of sample and the number of layers. Digital controllers allow for exact speed of card wrap motor and traversing motor. The instrument will then exactly reproduce future cards, starting in the same position on each card, and then providing the exact number of wraps per length. This is extremely critical when using spectrophotometers and colorimeters. The instrument always begins sampling in the same direction and provides bi-directional traverse. These features allow exact duplication of samples in optimum results from colorimeters. The ILE-CB-2BD is the only instrument with the above features. Universal clamping jaw accommodates various sizes of cardboard.

Specify power requirement: 110V, 60Hz. or 220V, 50Hz.

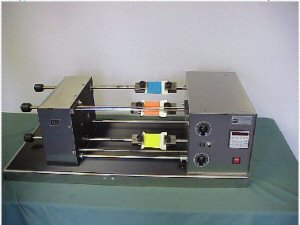

Inspection Card Winder Model: ILE-CB-2-BD-3

Dual motor driven inspection card winder samples 3 cards simultaneously.  Specially designed for winding sample cardboards to check appearance characteristics of dyed yarns on colorimeters.  This machine has a bi-directional traverse that lays yarn in multiple layers to produce accurate color readings.  Universal clamping jaw accommodates various size cardboards. Specify power requirement: 110V, 60Hz. or 220V, 50Hz.

Inspection Card Winder Model: ILE-CB-2-BD-4

Dual motor driven inspection card winder for 4 cards simultaneously.  Specially designed for winding sample cardboards to check appearance characteristics of dyed yarns on colorimeters.  This machine has a bi-directional traverse that lays yarn in multiple layers to produce accurate color readings.  Universal clamping jaw accommodates various size cardboards. Specify power requirement: 110V, 60Hz. or 220V, 50Hz.

Additional Black Cardboards:                                     5" x 9"

            (Sold in packs of 25 ea.)                                                7" x 11"

                                                                                    9" x 12"

Additional white cardboards (L x W)

            (Sold in packs of 25 ea.):                                    3.5"x 2.0"

                                                                                    3.0"x 3.0"

                                                                                    4.75" x 3.0"

                                                                                    6.5"x 2.25

                                                                                    8.25"x 1.5"

                                                                                    9.0" x 5.0

                                                                                    11.0"x 2.0"

                                                                                    11.125"x 3"

                                                                                    11.0"x 8.5"

SKEIN DEWINDER (For visual inspection)

Model: ILE-SCW-218-A

Skein dewinder designed for unwinding sample dyed skeins and winding back onto a cardboard in multiple layers for color analysis testing purposes. Complete with take-off reel, tension gate, and dual electronic speed control.   110V, 60Hz. or 220V, 50Hz.

SKEIN DEWINDER (For Spectrophotometers & Colorimeter)

Model: ILE-SCW-218-B

Skein dewinder designed for unwinding sample dyed skeins and winding back onto a cardboard in multiple layers for color analysis testing purposes. Complete with take-off reel, tension gate, and dual electronic speed control.  With digital preset counters for number of layers and wraps per inch / centimeter. 110V, 60Hz. or 220V, 50Hz.
